Integrated IPTV Gateway is a modular design digital headend equipment. It can provide 9 slots for different modules, supports up to 144 IPTV channels output, supports up to 36 different satellite signals, supports up to 36 AV signals input and output. Integrated IPTV Gateway is a powerful headend equipment. It is fit for hotel, hospital, marine IPTV applications.

Application Diagram:

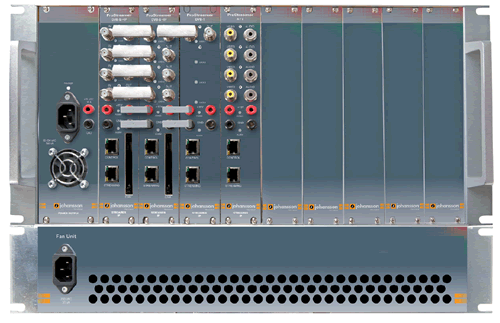

Pictures:

Features:

Modular rack design, provides 9 slots for different modules per rack.
Supports up to 144 IPTV channels per rack.
Supports up to 36 different satellite signals per rack.
Supports up to 36 AV/HDMI input.
Supports DVB-S2/DVB-T/DVB-C/AV/HDMI.
Supports Multicast, Unicast.
Web based software management.

DVB-S2 Module

DVB-T Module

AV Module
